Twitter? Experiences with Twitter
Twitter 140-character limit
Machine translation works almost perfectly for short messages
Global village where anyone can talk to anyone w/o language barrier.
Hyperconnectivity
7 times more devices connected to the Internet according to cisco from 2011.
What are these devices?
How will things change?
What kind of data are we dealing with?
Introduction from Protocol by Alexandar Galloway
"If one is to foster an understanding and awareness of how the social and the political are not external to technology, then it is important to understand how the technological is in some sense isomorphic to the social and the political
This book - Protocol - consistently makes a case for a material understanding of technology... This type of materialist media studies shows how the question "how does it work?" is also a question "whom does it work for.?" In short, the technical specs matter, ontologically and politically."
What is Unique about the Internet?
Think of other 'networks'
Internet Traffic
Text (e-mail/data)
Audio
Video
The amazing thing about the Internet is that you can transmit different kinds of data efficiently. Can your water pipes or gas lines do that?
Why?
The key to having all these different traffic types on the Internet is... that these are all digital data!
What is the difference between Analog and Digital?
Notes
What is the difference between Analog and Digital?

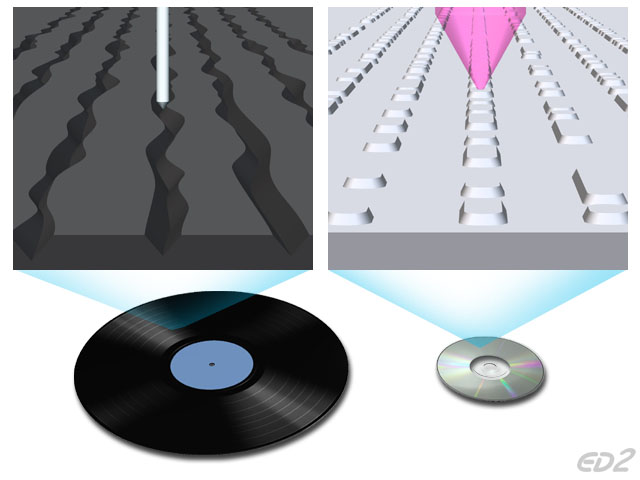

Spinning vinyl under a microscope
Notes
Audio
Notes

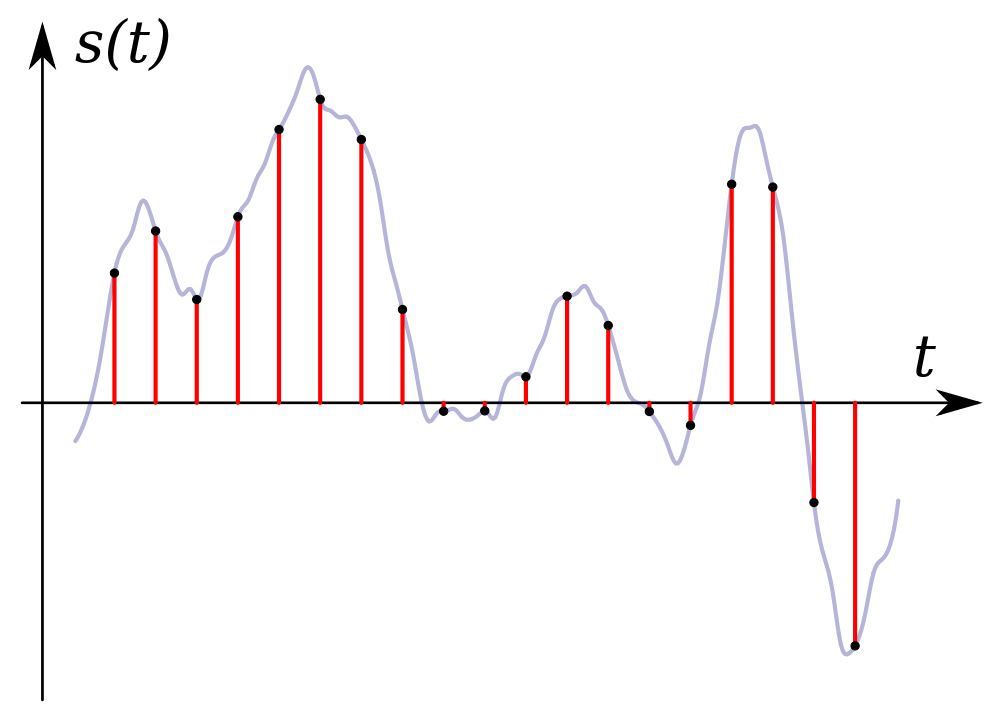

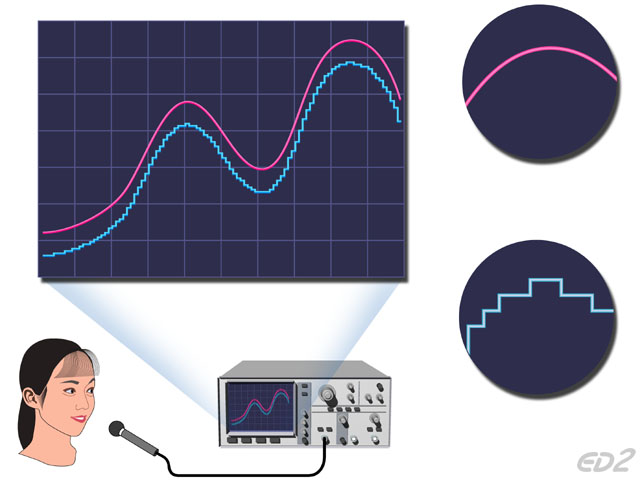

Digitization of Audio
Why don't we hear the abrupt transitions?
Why don't we hear the abrupt changes?
Audio: Sampling Rate
In digital audio the most common sampling rates are 44.1 kHz, 48 kHz, 96 kHz and 192 kHz.
The number of samples per unit of time (usually seconds) taken from a continuous signal to make a discrete signal is called a "sampling rate". In digital audio the most common sampling rates are 44.1 kHz, 48 kHz, 96 kHz and 192 kHz.

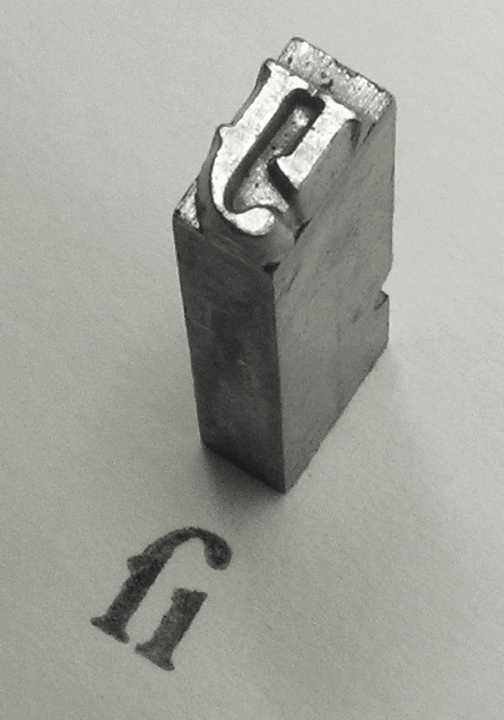

Text: Movable Type
Notes: From Dani/Kittler "gramophone, film, typewriter"
Atomization of the Phonetic Alphabet into movable type {
- printing press breaks our expereince of speech to individuated characters
that may represent any phrase or sentence
- decentralized church power
- set the ground for future technology (photography to the computer) by being
modular, comprising a whole from a fragmented elements.
Moving pictures: 24 frames, pixesl
}

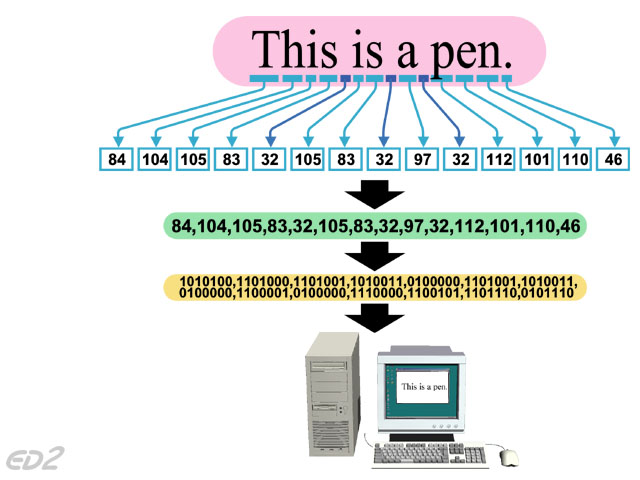

Text
Notes
Analog vs Digital
Analog
continuous signal
noise -> signal loss and distortion (cannot distinguish between error and data)
imperfect copy
Digital
discrete signal
magic of mathematics
noise/error -> error detection/error correction
indefinite faithful copies
compression
Notes

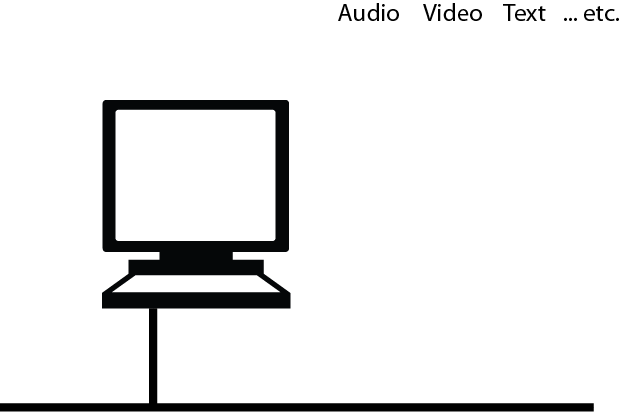

Computer Networking 1
You digitize audio, video, text...etc
Computer Networking 2
You get a sequence of binary data.

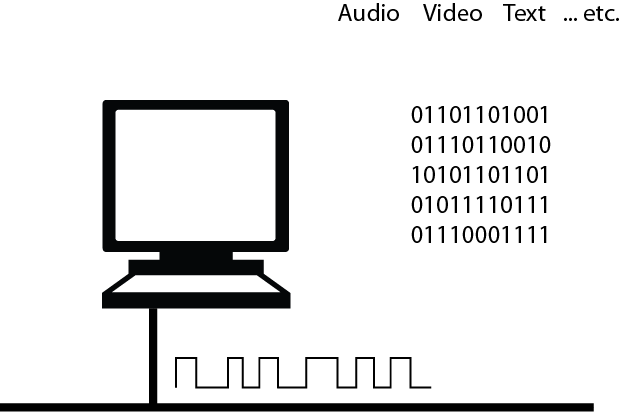

Computer Networking 3
The computer splits the data in smaller chunks and sends out highs/lows on physical cables.

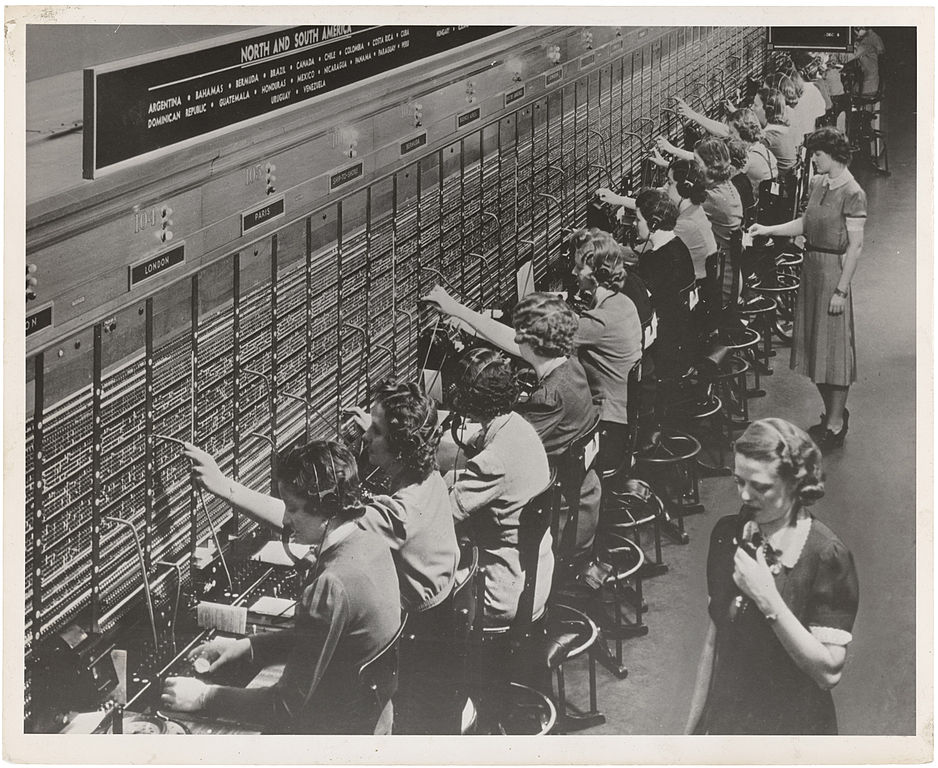

Remember this?
Notes

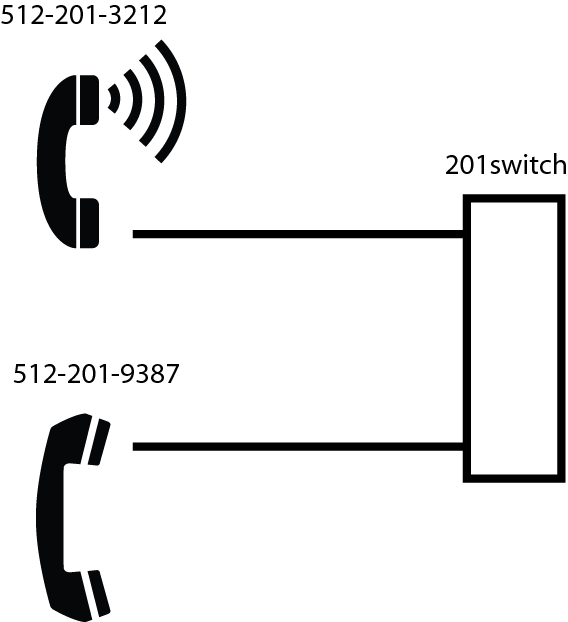

The Telephone Network
Notes

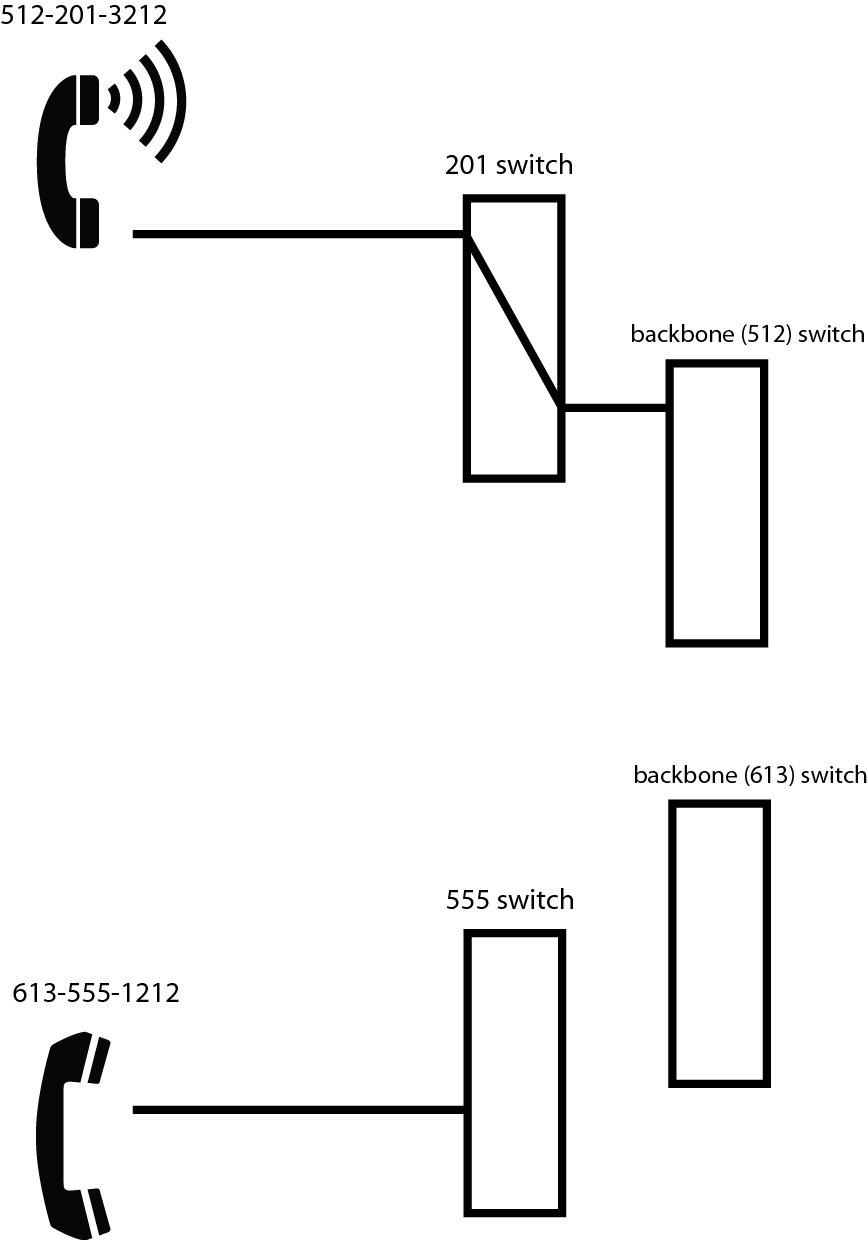

The Telephone Network 2
Notes

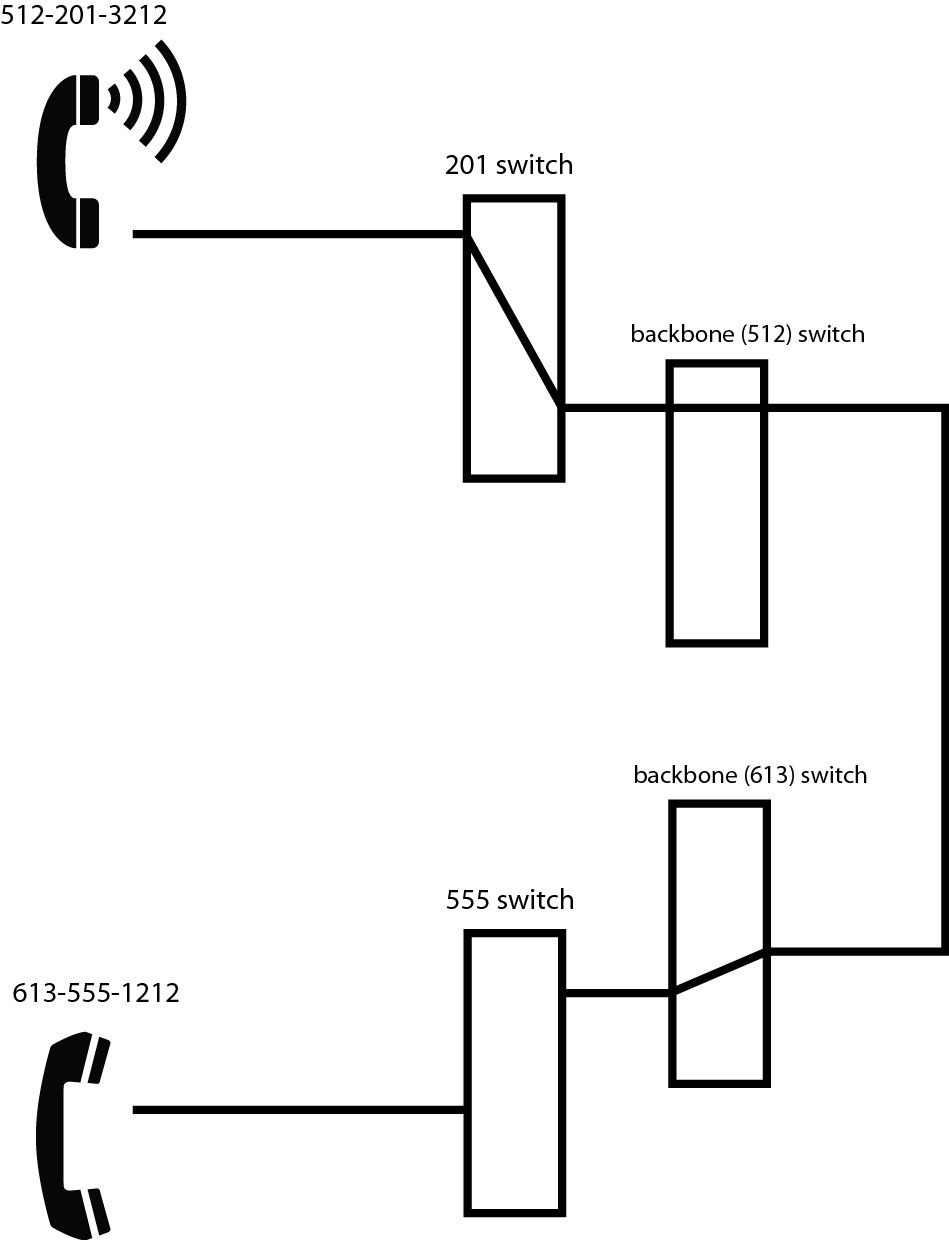

The Telephone Network 3
Notes
The Telephone Network 4
Notes
The Telephone Network 5
Notes
The Telephone Network 6
Notes
The Telephone Network 7
Notes
The Telephone Network 8
What does silence on a telephone network sound like?
Notes

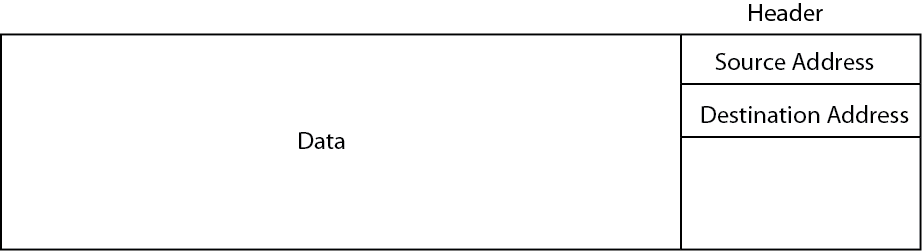

Internet - Packets
One of the radical idea of the Internet was to split the data into smaller chunks called packets.
Internet - Packets
One of the radical idea of the Internet was to split the data into
smaller chunks called packets.
Packet switching, datagrams.
ifconfig -a
size ofpackets: mtu (in bytes)
en0: wired
en1: wireless
fw0: IPover firewire
Internet - Packets 2
%ifconfig -a
to look at MTU (packet) size (byte = 8 bits) and available interfaces
Notes
Navigating the NYC Subway
You don't have the map of the subway system
Conductor on certain line will know all the station on that line (eg. conductor on yellow will know all the stations
on yellow line and the connecting lines)
Midtown to Canal St (Blue line)
You are a packet. You know where you are from (SRC) and where you
want to go (DST). You don't have the map of the
Subway(Internet). -> Small window works. Briefly show where Broad
St is. Then move to midtown and ask what they would do.
Some stations, you get off and that is it! Nothing else.
Some stations there are other lines coming in. (Grand Central has the Green line, Purple, Gray).
Routing
Navigating packets to its destination is called "routing"
Imagine the subway system with each line (red, blue, brown...etc)
independently administered. Each line knows about its own
stations and where it connects with other lines.
Nodes (=stations)
Routers(=transfer stations).
Any node that has more than two network interfaces can be a router (Just like any train station with more than two lines can be a transfer station).
Notes
Routing 2
My computer -> www.sfc.keio.ac.jp
My computer ---> router in studio art building closet ---> router at edge of Reed network ---> router at network provider...

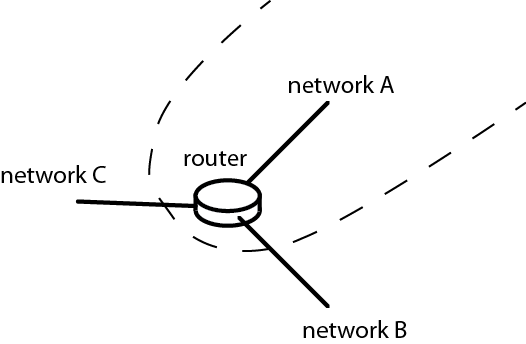

Routers
Scope:
Routers know a lot about its own network. (eg. router in the Reed network knows where every computer is in its own network).
Routers have limited knowledge outside of its network. (eg. if a packet is going east coast forward it to network B, if it is going to the west coast forward it to network C).
Best-effort:
If one network is down, it will try another route.
If a particular network is congested, routers may forward your packet to another network.
Routers are allowed to drop (give up on) your packets if it's too busy.
Looking up routing table using a UNIX command %netstat -r
Routers know a lot - it's kind of like a station in the Yellow
line knowing every station on the yellow line.
The Internet
The Internet is a network of networks, each with different administrative domain
Notes
Questions?
What are the strengths/weaknesses of the Internet system as compared from the telephone network?
p11 a telephone network - switching is concentrated and hierarchical. calls go first to a
local office, then on to a regional or national switching office if necessary. each user is connected to only one local office and each local office serves a large number of users. Thus destroying a single local office would cut off many users from the network.
small inexpensive lower quality links and compensate for failures
- message switching to packet switching
Characteristics of the Internet
- Resilient
- No central control
- Best effort
- Small inexpensive lower quality links that are allowed to fail
- Military Effort (ARPA) in a Cold War environment
- Often mentioned as designed to survive a nuclear attack.
- Resilient against physical attacks. Perhaps not so to virtual/cyber attacks.
Notes

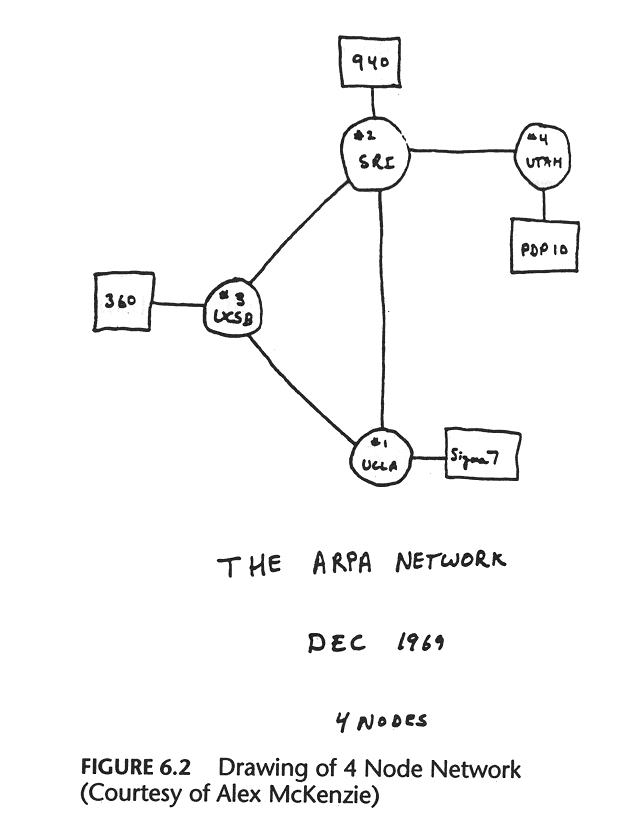

The Internet (Dec. 1969)
What are the questions one could ask through this diagram?
Notes
The Internet (Jun. 1999)
Notes

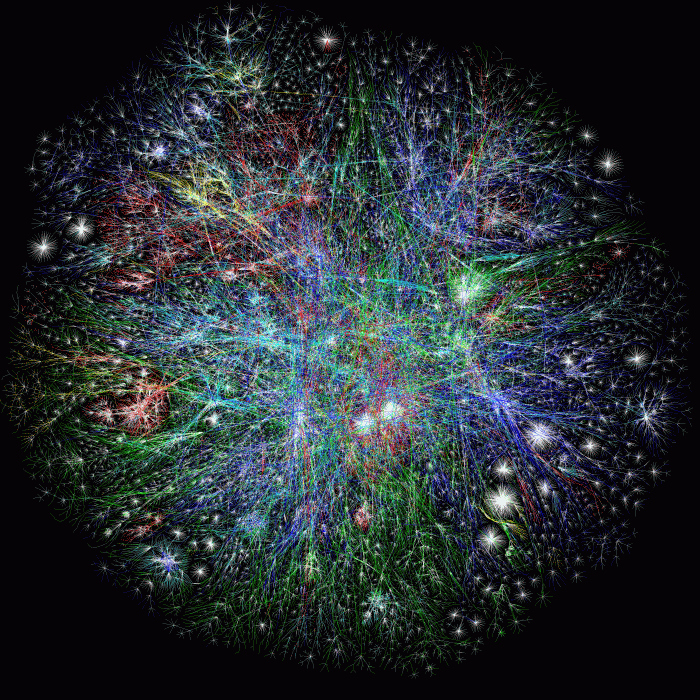

The Internet (2010)
Notes: find network image of brain, mushroom and others.
The Cloud
from A prehistory of the Cloud (pX)
"situate a network... within the same epistemic space as somehting that constatnly fluctuates and is impossible to know"
A prehistory of the cloud:
"situate a network... within the same epistemic space as somehting that constatnly fluctuates and is impossible to know"
